Reinforcement that never rusts.
GFRP (glass fiber reinforced polymer) rebar takes a different approach to reinforcing concrete. High-strength glass fibers are locked into a polymer resin, giving a bar with an outstanding strength-to-weight ratio that solves many of the long-standing problems of steel.
Above all, it is built for corrosive conditions. Because GFRP simply cannot rust, it is the natural choice for coastal structures, chemical plants and any site exposed to salt, moisture or aggressive chemicals – extending service life and cutting maintenance costs for decades.
Technical parameters

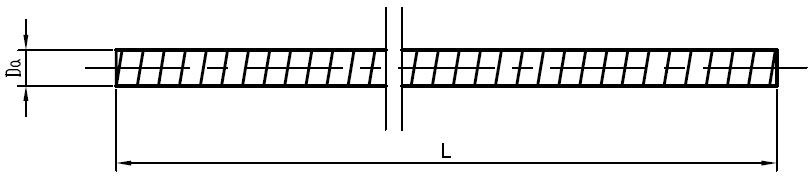

Da – outer diameter · L – length
| Size | Outer diametermm | Tensile loadkN | Effective cross-sectionmm² | Core tensile strengthN/mm² | Weightg/m |
|---|---|---|---|---|---|
| Ø3 | 3 ± 0.5 | 8 | 7 | 1143 | 18 |
| Ø4 | 4 ± 0.5 | 13.9 | 13 | 1069 | 32 |
| Ø6 | 6 ± 0.5 | 29 | 26.8 | 1082 | 55 |
| Ø8 | 8 ± 0.5 | 51 | 47.7 | 1069 | 100 |
| Ø10 | 10 ± 0.5 | 71 | 78.5 | 904 | 160 |
| Ø12 | 12 ± 0.5 | 97 | 113 | 858 | 230 |
| Ø14 | 14 ± 0.5 | 107 | 134 | 799 | 300 |
| Ø16 | 16 ± 0.5 | 130 | 185 | 703 | 385 |
| Ø18 | 18 ± 0.5 | 165 | 234 | 705 | 490 |
| Ø20 | 20 ± 0.5 | 225 | 289 | 779 | 590 |
| Ø22 | 22 ± 0.5 | 275 | 341.9 | 804 | 710 |
| Ø25 | 25 ± 0.5 | 340 | 441.5 | 770 | 930 |
| Ø28 | 28 ± 0.5 | 385 | 553.9 | 695 | 1160 |
| Ø30 | 30 ± 0.5 | 450 | 635.8 | 708 | 1280 |
| Ø32 | 32 ± 0.5 | 504 | 803.8 | 627 | 1520 |
| Ø34 | 34 ± 0.5 | 540 | 907.4 | 595 | 1750 |
| Ø36 | 36 ± 0.5 | 630 | 1017 | 619 | 1900 |
| Ø40 | 40 ± 0.5 | 640 | 1200 | 533 | 2400 |
Key advantages
- Light weight
- High tensile strength
- Corrosion resistant
- Anti-static
- Easy to cut on site
- No electrical or thermal conductivity
- Flame resistant
- Continuous thread profile
- Flexible
- Wide choice of diameters
International guidance
Guide for the design and construction of concrete reinforced with FRP bars.
Bridge design guide specifications for GFRP-reinforced concrete.
Canadian design requirements for FRP in buildings and bridges.
International guidance on FRP reinforcement in concrete structures.
Enquire about GFRP Rebar
Share sizes, quantities and your project location – we will reply with availability and pricing.
